Industrial Ice Cream Homogenization Equipment conveyer pump for ketchup

ShangHai Samro Homogenizer CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

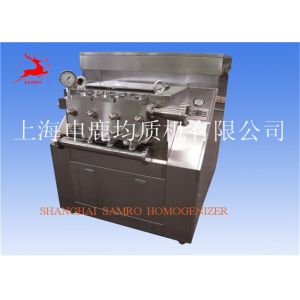

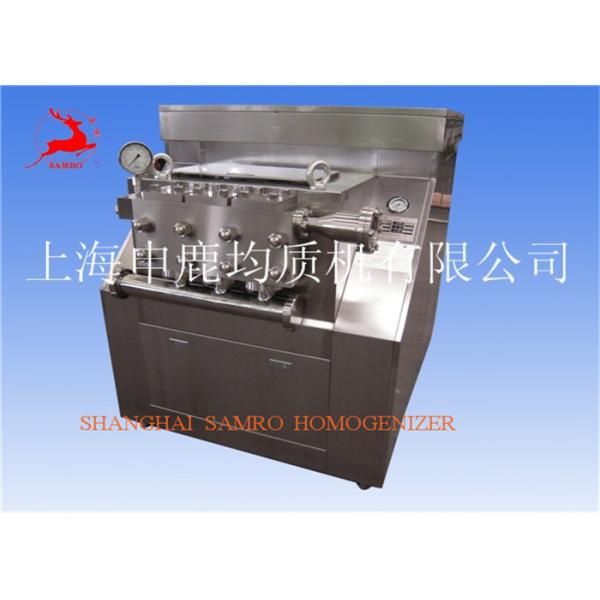

Industrial Ice Cream Homogenization Equipment conveyer pump for ketchup

  • 1
  • 2

Brand Name : SAMRO

Model Number : SRH10000-25

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 sets per month

Delivery Time : 20-30 working days after receiving down payment

Packaging Details : plywood with iron base package

Capacity : 10000 L/H

Max pressure : 25 Mpa

Normal working presure : 0-20 Mpa

Motor : 75 KW

Size : 190*150*150 cm

Weight : 4500 KG

warranty time : 12 months

business type : manufacture

Name : Industrial homogenizing Ice Cream Homogenizer conveyer pump for ketchup

Contact Now

Industrial homogenizing Ice Cream Homogenizer conveyer pump for ketchup

Working theory:

when product is flowing through the adjustable valve, the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes ( φ =0.01 - 2 μm, average φ ≤ 1 μm) because of pressure decrease, expansion, explosion, cutting and high-speed impacting etc., then the emulsions or dispersion could be produced. Through homogenizing the stablity, easy-absorb, long-life, taste and color etc. of product could be realized. Therefore, homgenizer has been recognized as the best equipment of the dispersion and emulsion in the century.

Industrial Ice Cream Homogenization Equipment conveyer pump for ketchup

Main technical parameters:

Model

SRH10000-25

Rated flow: L/H

10000

Max pressure: Mpa

25

Normal working pressure: Mpa

0-20

Inlet pressure: Mpa

0.2-0.3

Adaptable material feeding temperature / viscosity

100℃/≤1000CP

Rated motor power: KW

75

Size: cm

190*150*150

Weight: KG

4500

Lubricating oil

L-HM100 OR Mobil SHC627(ISO VG100)

Housing Material

Stainless steel

Plunge Sealing Material

packing

Pressure gauge

Diaphragm

Support material

shaped steel

Homogenizer Applications:

Food and Drink:

Enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, Ice cream, baby food, chocolate, flavors and fragrances, milk powder.

Chemical:

Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity Improvers.

Biotechnology:

Cell disruption of yeast, E.coil other bacteria and algae.

Pharmaceutical:

Antibiotics, skin cream, intravenous, emulsion, ointments, tablet coatings, lipostiomes

Cosmetics:

Hair products, skin creams, lotions, perfumes, shampoos and conditioners.

Types of Homogenizer:

Manual Operating Homogenizer:

Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.

Hydraulic Operating Homogenizer:

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.

Pneumatic Operating Homogenizer:

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.

Large Capacity Homogenizer:

This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.

Laboratory Homogenizer:

Capacity: 60L/H Max Pressure</=70MPa

Minimum Sample Volume: 200ml

Two-stage Homogenizing

Qustions you may have about our company:

1. Are you a new company?

Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.

2. Do you have different pressure from the mentioned one?

Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you rather good price.

3. What’s the meaning of your Model No.?

We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.

We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.
